The HX-9100 Dew Sensor is used to prevent condensation on surfaces such as cold water pipes, cool ceilings and windows.

The HX-9100 can be connected to Johnson Controls System controllers to provide override functions when condensation is forming.


  • Supply voltage: 15 VDC ± 10%
  • Action: ON/OFF or 0...10 VDC
  • Hysteresis: 1%
  • Output: open collector closed: 0.5 VDC max or ≤ + 0.5 VDC
  • Protection class: IP44

Download the specification in Pdf format here     Download

HX-9000 - Dew Sensor

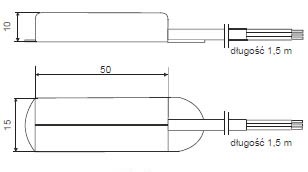

Dimensions in mm
